    Capsule phase control tyristor

    Product Details

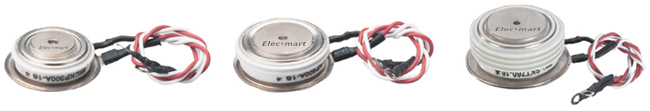

    Phase control tyristor(capsule version)

    Features

    ■All diffuse techinics
    ■Ceramic disc type seal
    ■Middle trigger
    ■Bifacial cooled
    ■High current

    Typical applications

    ■Big power transformer
    ■AC & DC motor control
    ■AC & DC switch
    ■Phase control rectification
    ■Inverter

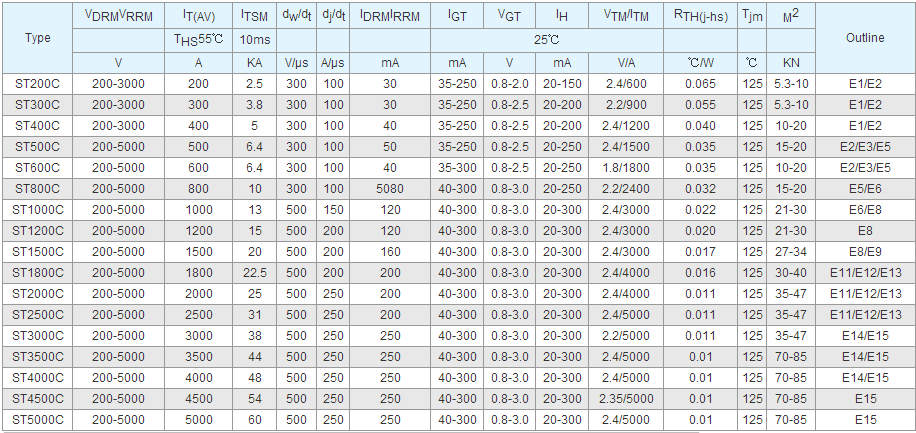

    Ordering information table

    Explanation
    ■IGT,VGT,IH are TA=25℃ test data,others are all TA=Tjm test data.
    ■I2t=I2TSM×tW/2:tW=Half sine wave current when at 50HZ, I2t=0.005I2FSM(A2S)
    ■When at 60HZ ITSM(8.3ms)=ITSM(10ms)×1.066,Tj=Tjm
    ■I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm
